1/10 scale Nissan Titan King Cab crawler - Black
Updated 9/28/2013


Specs:

  • Parma 10127 Nissan Titan King Cab body - Painted black

  • carmate seats

  • Wrestlers for drivers

  • Axial scx10 beadlocks and tires

  • Brushless motor

  • ESC - Castle

  • LED headlights

  • Traxxas Links and rod ends

  • Steel NissanNut ladder frame and bumpers, sliders etc. 1/2" flat stock 11 gauge

  • Traxxas T-Maxx Trans

  • Traxxas emaxx driveshafts -

  • Traxxas shocks

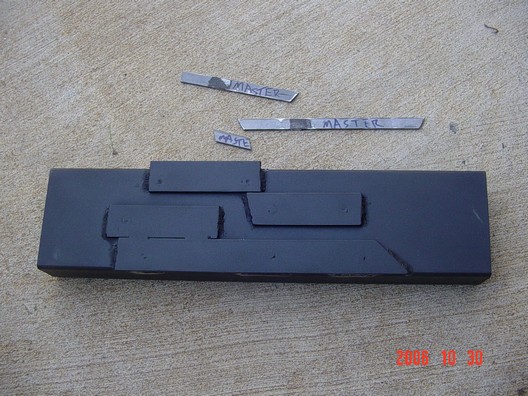

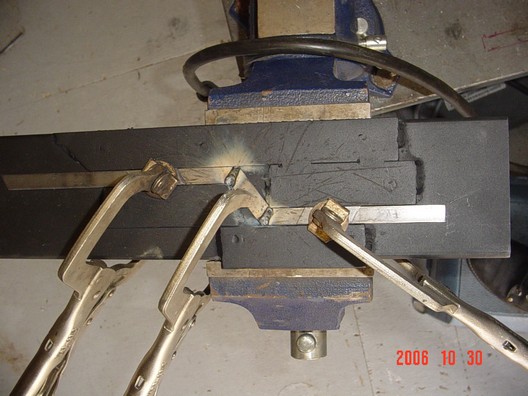

The frame was made for the Parma Titan lexan body. I made a jig for the frame rails.

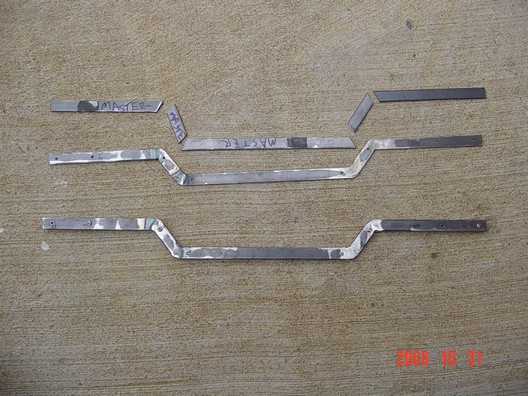

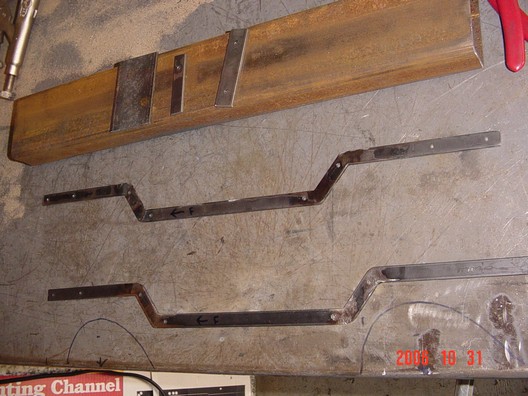

Drilled one hole, then bolted together. Then drilled another hole. Bolted together etc. Then I grind/sand the rails equal to each other. The bottom rail is TWO rails bolted together all drilled for link mounts.

This is my marker template on the table. I layed the Titan body down drew the wheel well centers and made my frame rails to match body lines.

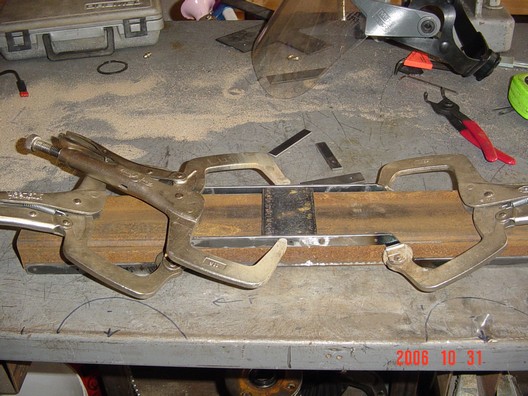

I made a jig out of a 1.5 x 3 tube. Its the perfect size for placing the cross members above and below the frame rails.

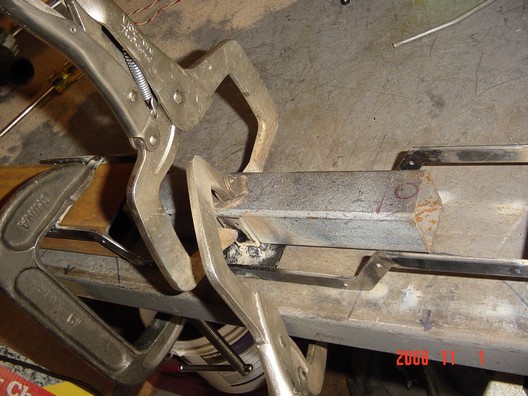

I added 4 crossmembers, the trans mount was replaced with a tranny upgrade.
