Bumper location raised due to Body lift on a Nissan Xterra WD22 / Frontier D22 2" and 3" body lifts

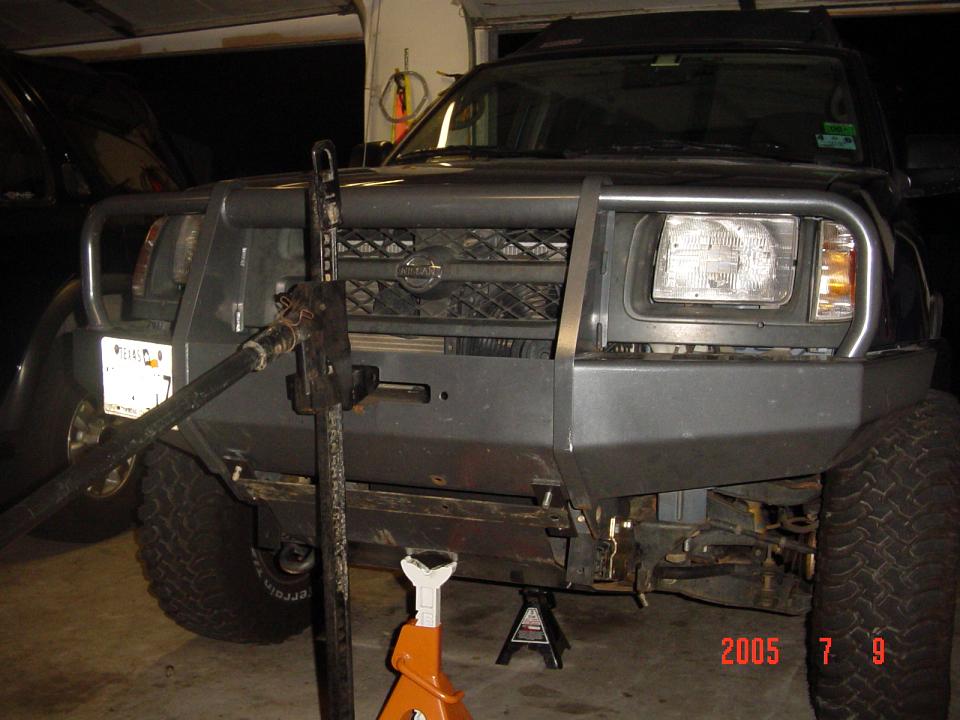

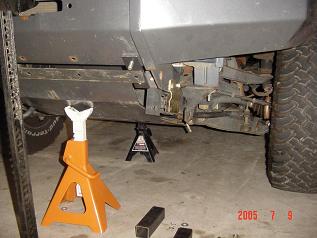

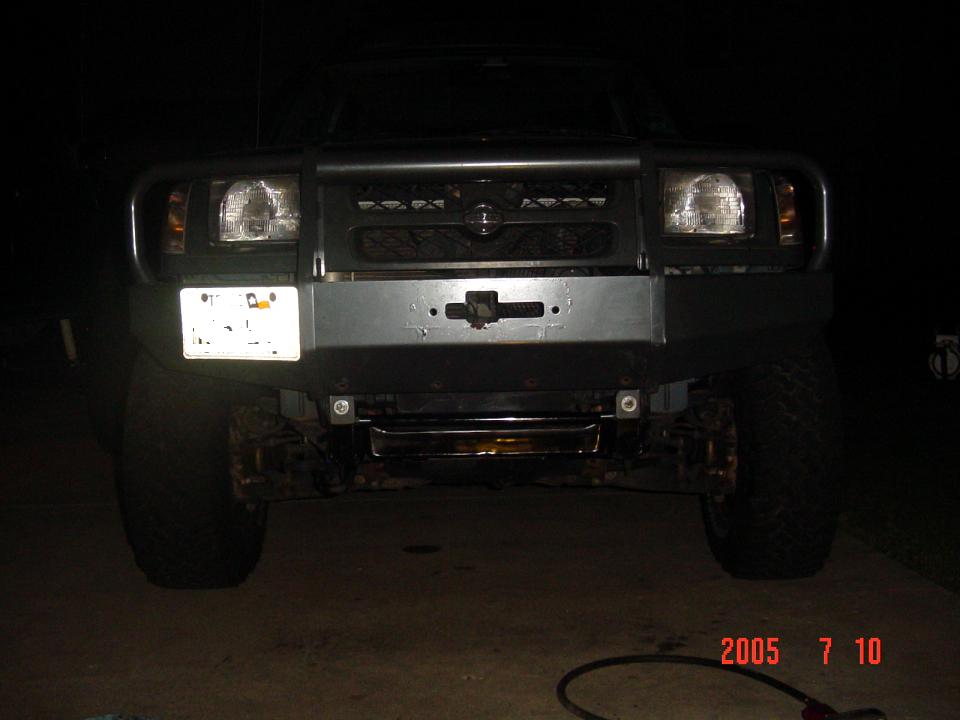

The first one is a 3" Body lift on a 2000 Xterra with a Cal Mini bumper.

Parts needed: 24" of 1" round DOM tube. 4 grade 8 bolts. 14" of 2" square tube 4" of 1/8 2" flat stock and 1/4 2" wide flat .

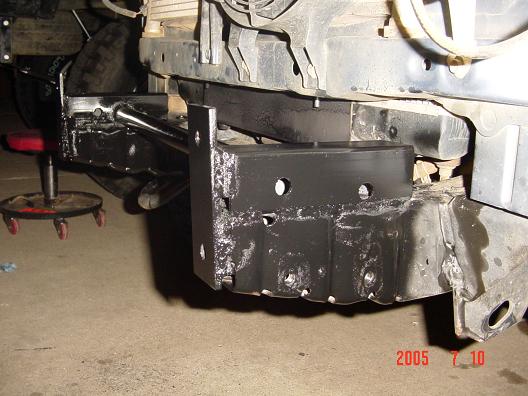

  Weld on some 2" DOM tubes to raise the holes up.

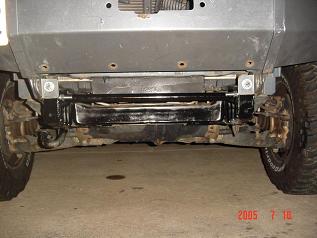

Added a piece of DOM as a crossmember. Owner did not want to cut off old frame horns. Just in case he removes BL in future. This Xterra now has the Calmini Coil over SAS kit.

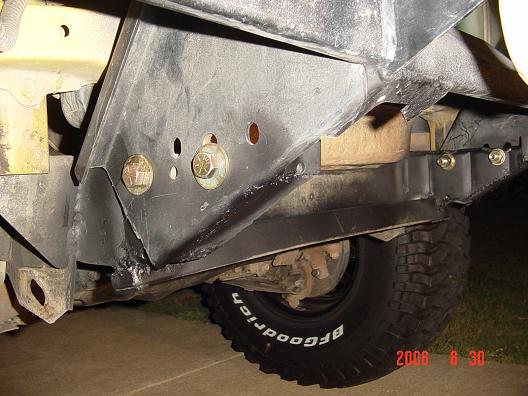

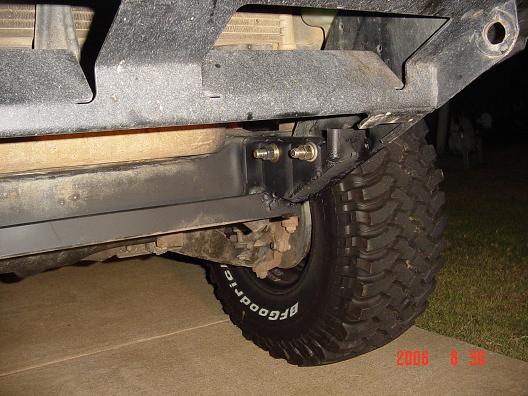

2" BL with an ARB bumper

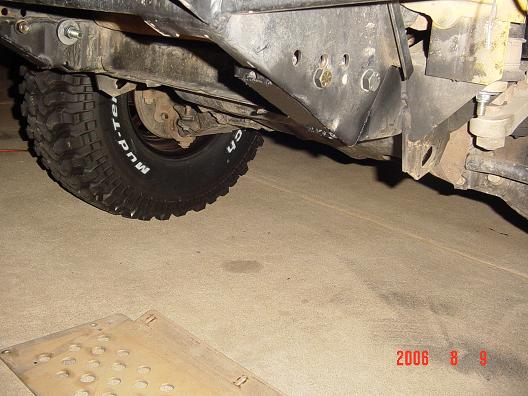

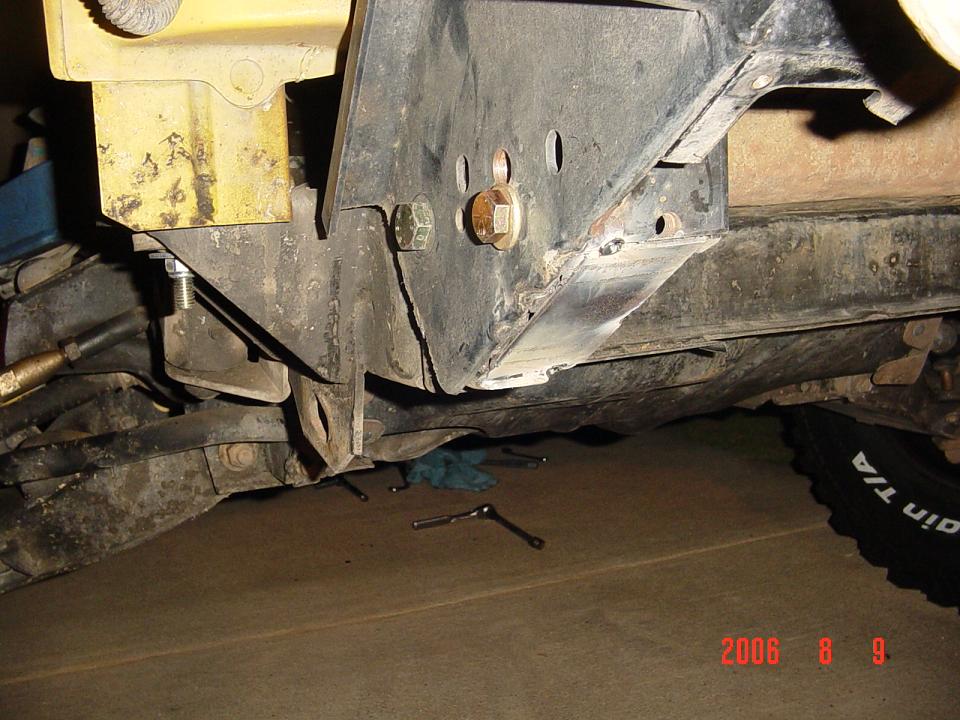

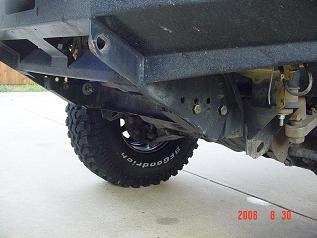

This is after the 2" Body Lift install

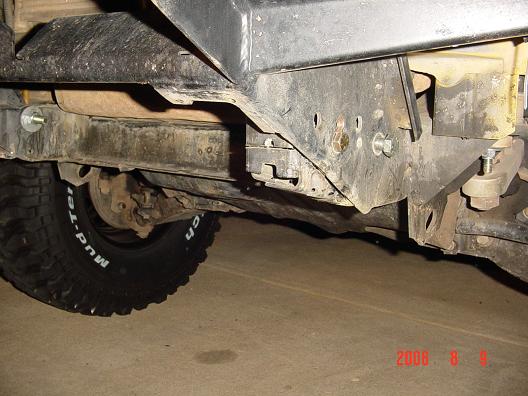

First cut off rear tab on bumper right after second hole.
